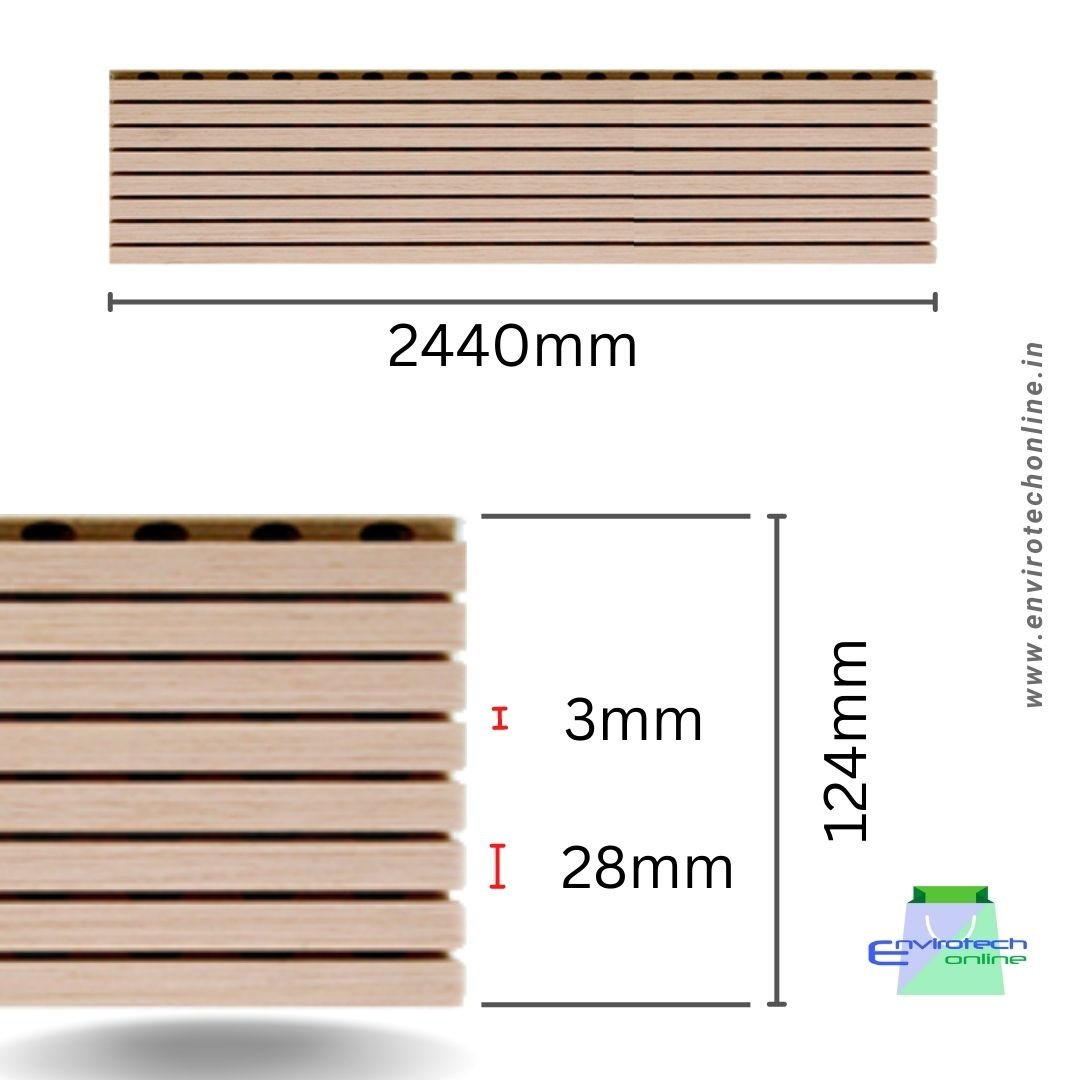

Envirotech Envirotech Grooved Wooden Slats – G28 Acoustical Wood-based panels with lineal perforations. The panels shall be fire-resistant grade with melamine laminate panels 2440mm x 128mm x15mm with 3mm slats at 14/21/28mm pitch, Tongue, and Groove edges for seamless mounting. The back of the panels is perforated with 10mm diameter circular holes with a nonwoven fabric covering of 0.2mm for providing Sound absorption via the acoustic impedance method. The panel is to be fixed on the Strut Keen18 framework with a screw fixed horizontal/vertical to cross channel 25 mm at every 600mm c/c with center & edge brackets in the tongue & groove system on Strut Keen 18 framework. The paneling work shall be done completely in all respects as per detailed working drawings. The paneling should be properly done in proper alignment and level as per the satisfaction of the Architect/E.I.C. all complete for all heights and levels.
Wall Absorption Specification with Wooden Slats:
Providing and fixing woodwork perforated panels of width 128mm, the thickness of 15mm, and length of 2440 mm or as required by the approving engineer, made of a high-density MDF board substrate with a laminated facing as per the desired shade / species & finish and melamine balancing layer on the reverse side. The board shall have a special perforation pattern where the visible surface has a fluted perforation of 3 mm width and 28mm of visible panels each. The panels shall provide a minimum sag resistance of RH 90 and a fire rating class of 1 as per Part 7 of BS 476. The edge of the panel shall be tongue and grooved to receive special clips for installation.
Acoustic Grooved Wooden Slats
Acoustic-grooved wooden slats are architectural and interior design elements used to enhance both the acoustic performance and aesthetics of interior spaces. These slats are typically made from wood and have grooves or perforations on their surface. Here are some key characteristics and benefits of acoustic grooved wooden slats:
